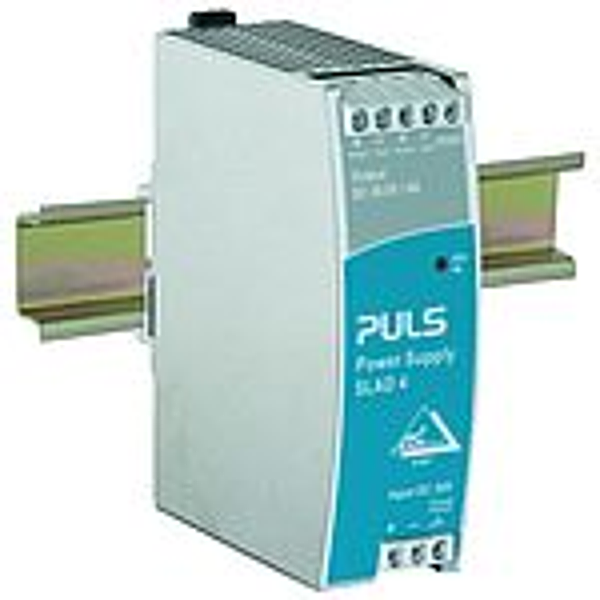

Puls SLAD4.100
AS-Interface power supply
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
DC/DC Converter, isolated output. AS-Interface decoupling network included. Negligibly low input inrush current. Full output power between -25 and +60°C
Technical parameters
| DC-Input Voltage: | DC 24V (-25%/+35%) |
| Input Inrush Current Limitation: | active |
| Nominal Voltage: | 30.5Vdc |
| Adjustment Range: | 30.6 |
| Output Current Range: | 4A |
| Output Current: | 4A at 30.6V |
| Output Power: | 0W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 40mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 500g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 3W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 90,5% |
| Power Losses, typ.: | 12,7W |
| MTBF SN 29500 @ 40°C (h): | 1.247.000h |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
