Product
Puls
SL40.300
Request a Quote
Image copyright: Puls

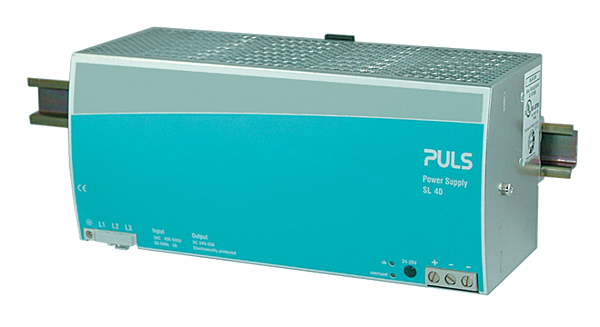

Puls SL40.300
DIN-rail power supplies for 3-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
400-500V Wide-range input. Efficiency up to 92,6%. 45A PowerBoost. Full output power between 0 and +60°C
Technical parameters
| AC-Input Voltage: | AC 400-500V |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 40-34.3A |
| Output Current: | 34.3A at 28V 40A at 24V |
| Output Power: | 960W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 275mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 3300g |
| Mounting Method: | DIN-Rail |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
