Product
Puls
QTD20.241
Request a Quote
Image copyright: Puls

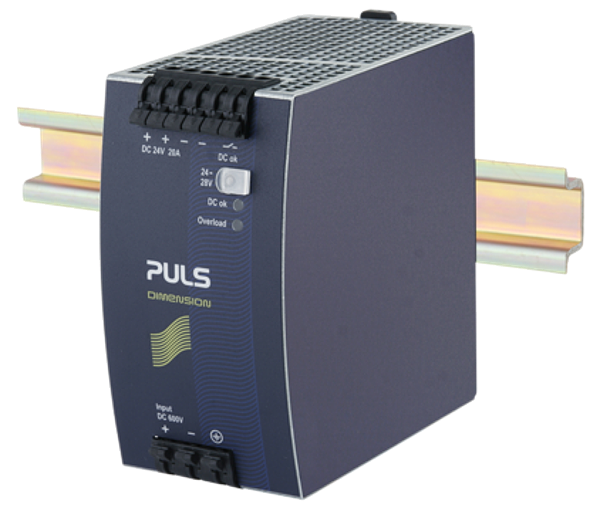

Puls QTD20.241
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
DC 600V Input. Optimized for Intermediate DC-bus of Drive Systems. Two Input Fuses for DC 600V included. 95% Full Load and Excellent Partial Load Efficiencies. Width only 65mm, Weight only 890g. 25% BonusPower ® , 600W for up to 4s. Active Filtering of Input Transients. Full Power Between -25°C and +60°C. Extremely Low Input Inrush Current Surge. Reverse Input Polarity Protection. DC-OK Relay Contact. Quick-connect Spring-clamp Terminals
Technical parameters
| DC-Input Voltage: | DC 600V (-20%/+40%) |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 20-17.5A |
| Output Current: | 17.5A at 28V 20A at 24V |
| Output Power: | 480W |
| Power Reserves: | 25% Power Reserves |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 890g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 95.0% |
| Power Losses, typ.: | 25.5W |
| MTBF SN 29500 @ 40°C (h): | 446.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
