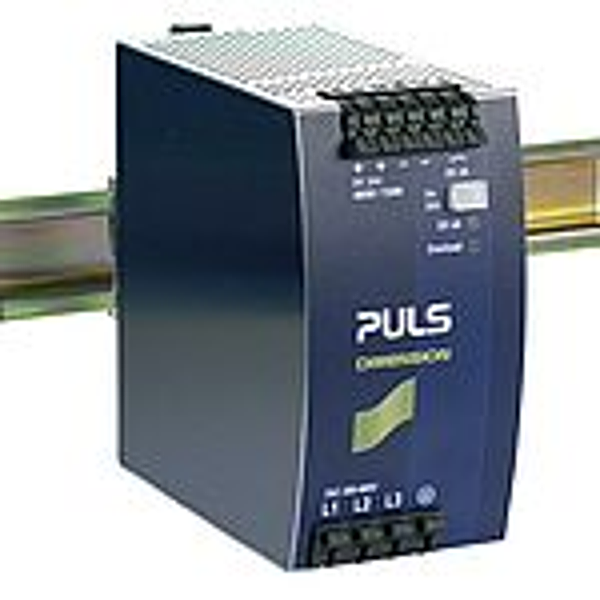

Puls QT20.241-C1
DIN-rail power supplies for 3-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
3AC 380-480V Wide-range Input. Also Specified for 2-Phase Operation. Extra Long Lifetime. 95% Full Load and Excellent Partial Load Efficiencies. Width only 65mm, Weight only 870g. 50% BonusPower®, 720W for up to 4s. Active Power Factor Correction PFC. Active Filtering of Input Transients. Full Power Between -25°C and +60°C. Extremely Low Input Inrush Current Surge. DC-OK Relay Contact. Quick-connect Spring-clamp Terminals. Conformal coated
Technical parameters
| AC-Input Voltage: | AC 380-480V (± 15%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.94 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 3A/3A (J1) |
| External Input Fuse Recommendation: | min. B-6A / C-3A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 20-17.5A |
| Output Current: | 17.5A at 28V 20A at 24V |
| Output Power: | 480W |
| Power Reserves: | 50% BonusPower® |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 870g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 95.0% |
| Power Losses, typ.: | 25.3W |
| MTBF SN 29500 @ 40°C (h): | 690.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
| J1): | 3x400V, 50Hz/ 3x480Vac, 60Hz, independent of temperature |
