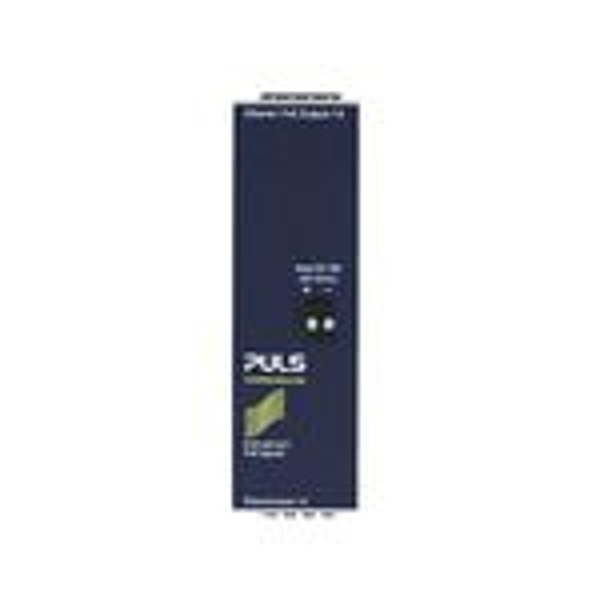

Puls POE.8AT-DC1
PoE injector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
DC 48-56V Input. Efficiency 96.1%. Width only 39mm. 8x 30W ports (acc. to IEEE 802.3 at). Data transfer rate 1000Mbps. Temperature range -45°C and +85°C. Plug & Play installation and DIN rail mounting
Technical parameters
| DC-Input Voltage: | DC 48V-56V |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 0.63A |
| Output Current: | 0.63A at 48V |
| Output Power: | 30W |
| Size (WxHxD): | 39mm x 128mm x 117mm |
| Weight per Piece (excluding packing): | 360g |
| Operat. Temperature Range: | -45°C ... +85°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 96.1% |
| Power Losses, typ.: | 4.2W |
| Connection method: | Plug connector, RJ45 Ethernet |
