Image copyright: Puls

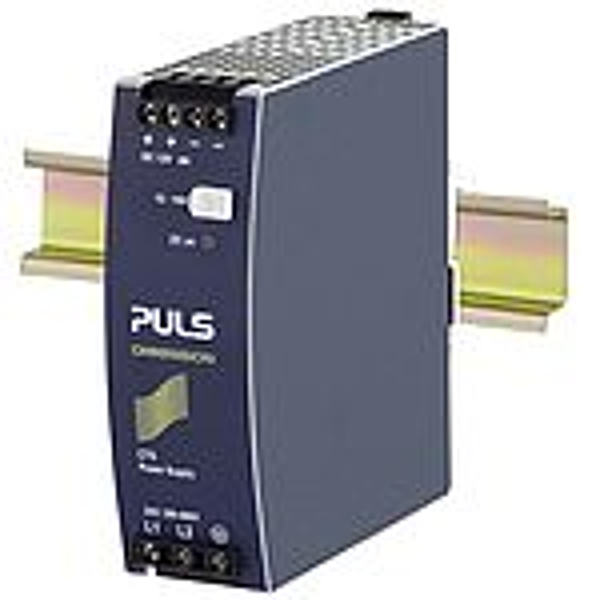

Puls CT5.121
DIN-rail power supplies for 3-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
2AC 380-480V Wide-range input. Input fuses included. Requires only two legs of a 3-phase system. Width only 40mm. Efficiency up to 85.8%. Input-transient blanking circuit included. Minimal inrush current surge. Full power between -25°C and +60°C
Technical parameters
| AC-Input Voltage: | AC 380-480V (-15%/+20%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | PFC |
| Power Factor: | 0.44 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/4A (B2) |
| External Input Fuse Recommendation: | min. B-6A / C-3A |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 8-6.4A |
| Output Current: | 6.4A at 15V 8A at 12V |
| Output Power: | 96W |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 40mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 500g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 2.5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 85.4% |
| Power Losses, typ.: | 16.4W |
| MTBF SN 29500 @ 40°C (h): | 983.000h |
| Connection method: | Screw terminals |
| B2): | Peak current at 2x400VAC / 2x480Vac, indeptendent of temperature |
