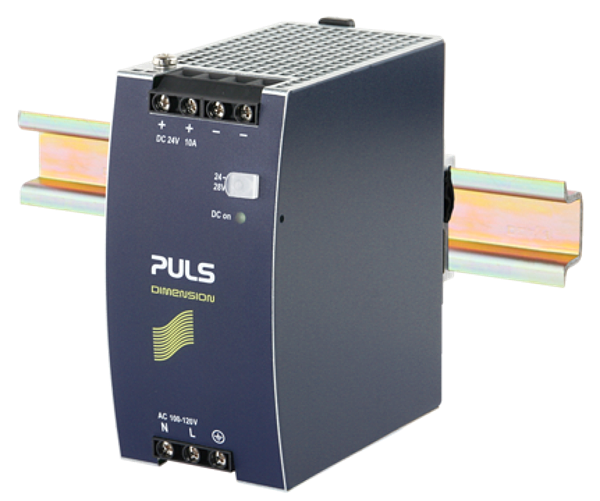

Puls CS10.243
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-120V single-phase input. Width only 60mm. Efficiency up to 91.3%. Easy fuse breaking due to high overload peak current. 20% Output power reserves. Full output power between 0°C and +60°C
Technical parameters
| AC-Input Voltage: | AC 100-120V (± 10%) |
| DC-Input Voltage: | |
| Power Factor: | 0.57 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 85A |
| External Input Fuse Recommendation: | min. B-16A / C-10A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 28V 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 60mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 700g |
| Operat. Temperature Range: | 0°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 91.3% |
| Power Losses, typ.: | 23.4W |
| MTBF SN 29500 @ 40°C (h): | 710.000h |
| Connection method: | Screw terminals |
| L1): | Peak current at 120Vac, ambient temperature +40°C and cold start |
