Puls
CPS20.481-D1
Request a Quote
Image copyright: Puls

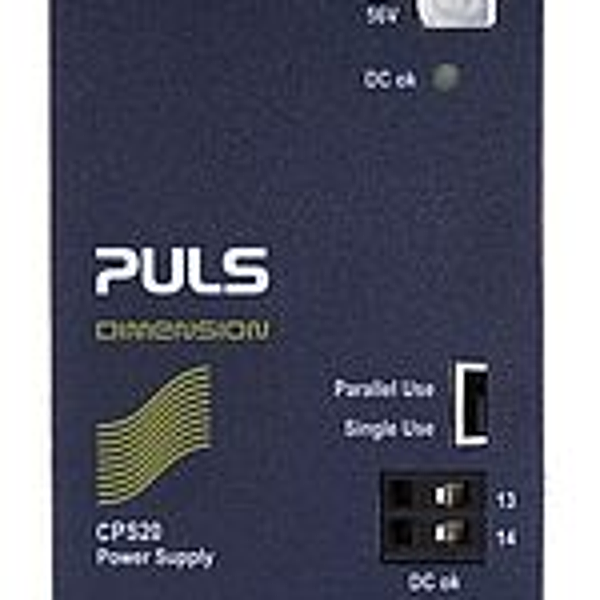

Puls CPS20.481-D1
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
88-360Vdc Wide-range Input. Width only 65mm. Efficiency up to 94.6%. ATEX and IECEx Approved. Excellent Partial Load Efficiency. 20% Output Power Reserves. Safe Hiccup. PLUS. Overload Mode. Easy Fuse Tripping due to High Overload Current. Minimal Inrush Current Surge. Full Power Between -25°C and +60°C. DC-OK Relay Contact. Reverse Input Polarity Protected. Current Sharing Feature for Parallel Use
Technical parameters
| DC-Input Voltage: | DC 110V-300V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 9A/7A (D1) |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 56V 10A at 48V |
| Output Power: | 480W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 940g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.6% |
| Power Losses, typ.: | 27.4W |
| MTBF SN 29500 @ 40°C (h): | 537.000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
