Image copyright: Puls

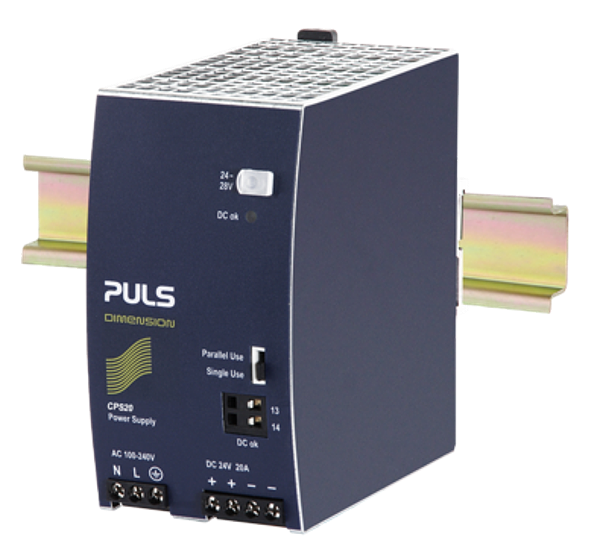

Puls CPS20.241
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range input. Width only 65mm. Efficiency up to 94.0%. ATEX and IECEx approved. Excellent partial load efficiency. 20% Output power reserves. Safe Hiccup. PLUS, overload mode. Easy fuse breaking due to high overload peak current. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact. Current sharing feature for parallel use
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.95 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 9A/7A (D1) |
| External Input Fuse Recommendation: | min. B-10A / C-10A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 20-17.1A |
| Output Current: | 17.1A at 28V 20A at 24V |
| Output Power: | 480W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 1000g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.0% |
| Power Losses, typ.: | 37.8W,30.6W |
| MTBF SN 29500 @ 40°C (h): | 537.000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
