Product
Puls
CP5.481
Request a Quote

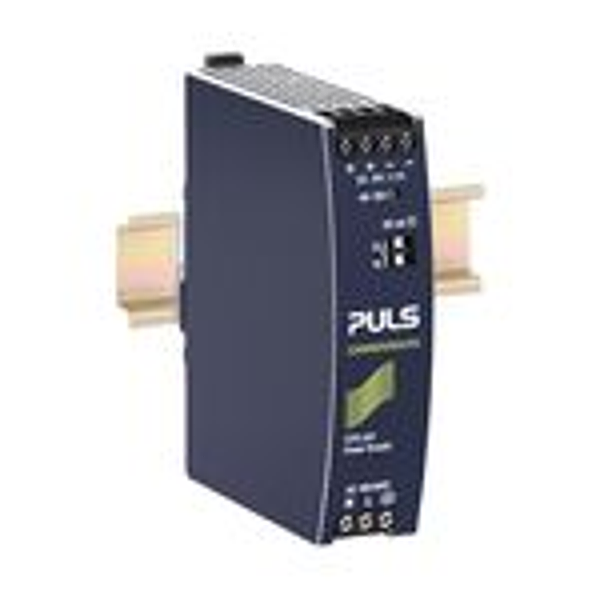

Image copyright: Puls
Puls CP5.481
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range input. Width only 32mm. Efficiency up to 93.5%. Excellent partial load efficiency. 20% output power reserves. Easy fuse breaking – 3 times nominal current for 12ms. Safe Hiccup. PLUS, overload mode. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.91 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/4A |
| External Input Fuse Recommendation: | min. B - 6A / C - 6A |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 2.5-2.1A |
| Output Current: | 2.1A at 56V 2.5A at 48V |
| Output Power: | 120W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 440g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 3W/°C at >60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 93.5% |
| Power Losses, typ.: | 8.4W |
| MTBF SN 29500 @ 40°C (h): | 166 000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
