Puls
CP5.241-S1
Request a Quote
Image copyright: Puls

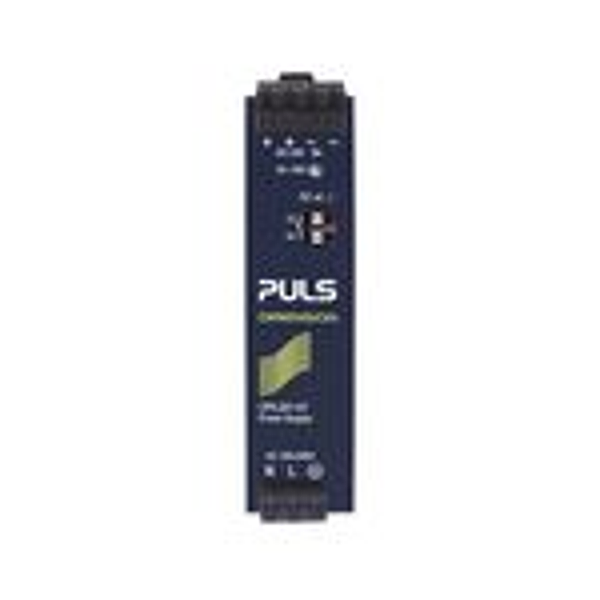

Puls CP5.241-S1
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range input. Width only 32mm. Efficiency up to 94.3%. Excellent partial load efficiency. 20% Output power reserves. Easy fuse breaking – 3 times nominal current for 12ms. Safe Hiccup. PLUS, overload mode. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.91 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/4A |
| External Input Fuse Recommendation: | min. B - 6A / C - 6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 5-4.3A |
| Output Current: | 4.3A at 28V 5A at 24V |
| Output Power: | 120W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 440g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 3W/°C at >60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.3% |
| Power Losses, typ.: | 7.3W |
| MTBF SN 29500 @ 40°C (h): | 867 000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
