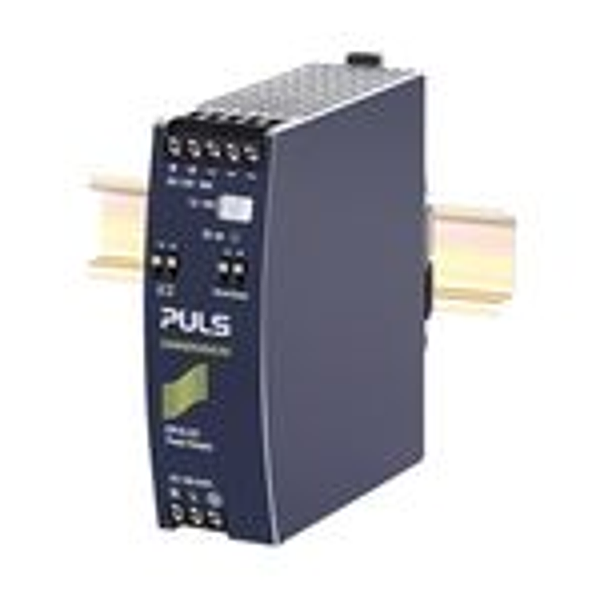

Puls CP10.121
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range Input. Width only 39mm. Efficiency up to 94.3%. Excellent Partial Load Efficiency. 20% Output Power Reserves. Safe HiccupPLUS Overload Mode. Easy Fuse Breaking due to High Overload Peak Current. Active Power Factor Correction (PFC). Minimal Inrush Current Surge. Full Power Between -25°C and +60°C. Remote ON / OFF Function. DC-OK Relay Contact
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0,96 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 6A/9A |
| External Input Fuse Recommendation: | B - 6A / C - 6A |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 16-12.8A |
| Output Current: | 12.8A at 15V 16A at 12V |
| Output Power: | 192W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 39mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 600g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 4,8W/°C at >60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.3% |
| Power Losses, typ.: | 11.6W |
| MTBF SN 29500 @ 40°C (h): | 690 000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
