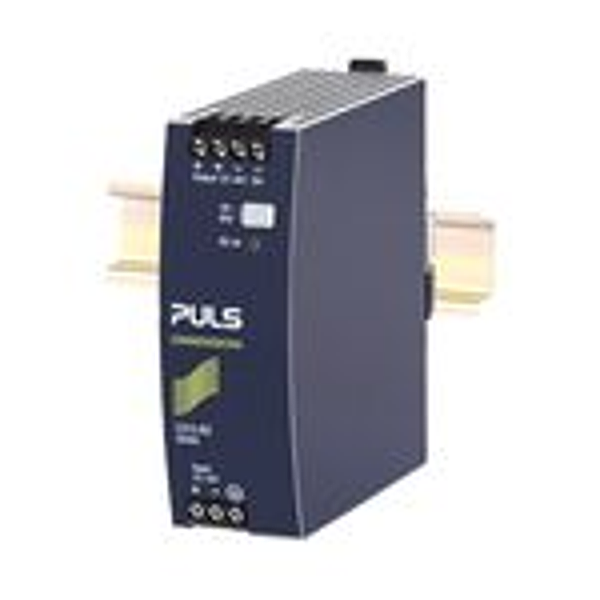

Image copyright: Puls
Puls CD10.482
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
48V DC-input. Isolated 48Vdc output. Efficiency 95.1%. Width only 42mm. 20% Output power reserves. Full power between -25°C and +60°C. Soft-start function. Minimal inrush current surge. Reverse input polarity protection
Technical parameters
| DC-Input Voltage: | DC 48V (± 25%) |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 5-4.3A |
| Output Current: | 4.3A at 56V 5A at 48V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| Size (WxHxD): | 42mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 500g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 95.1% |
| Power Losses, typ.: | 12.4W |
| Connection method: | Screw terminals |
