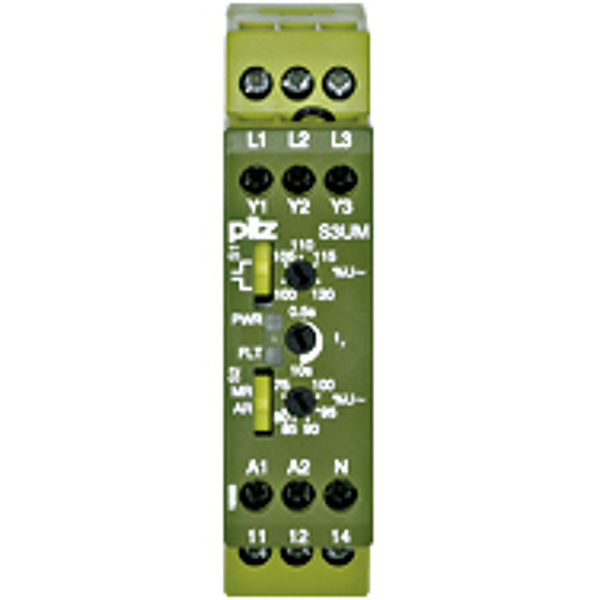

Pilz 837250
S3UM 24VDC UM 100/110VAC
Voltage monitoring relay for monitoring overvoltage and undervoltage, values, and the phase sequence in 3-phase mains; 40 - 400 Hz;. Measuring voltage 100/110 V AC Width: 22.5 mm; UB 24 V DC.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, CCC |
| Application options:: | Voltage monitoring |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal type:: | Screw terminal |
| Terminal style:: | fixed |
| Operating modes:: | Normally de-energised mode, Fault non-latching, Fault latching, Normally energised mode |
| Number of auxiliary contacts:: | 1 |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 122.0 mm |
| Gross weight:: | 140 g |
| Net weight:: | 130 g |
| Ambient temperature:: | -15 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
