Product
Pilz
8177005
PMCtendo SZ.75/0/1/2/7/W/H/30/00
Request a Quote

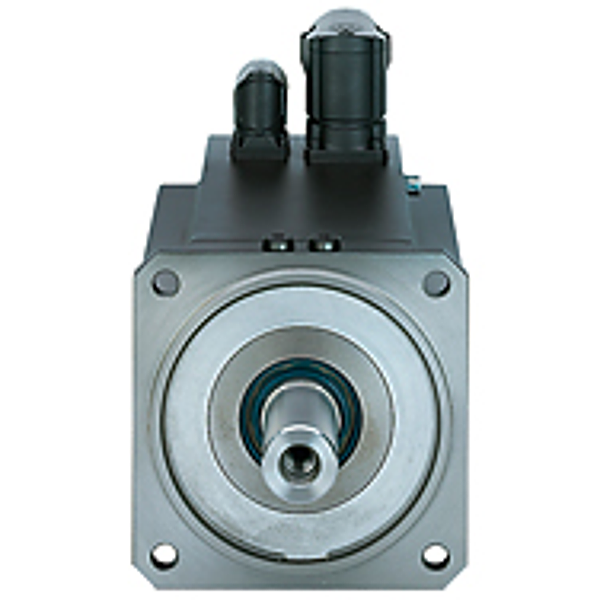

Image copyright: Pilz
Pilz 8177005
PMCtendo SZ.75/0/1/2/7/W/H/30/00
Mo = 39.4 Nm Io = 25.4 A UN = 400 V nN = 3000 min-1 Jmot = 34.0 kgcm2. Encoder ECI 1118 EnDat2.2 single-turn; without brake; Water cooling.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Motor size:: | 75 |
| Standstill torque:: | 39.40 Nm |
| Rated load torgue:: | 30.30 Nm |
| Peak torque:: | 104.00 Nm |
| Standstill current:: | 25.40 A |
| Nominal voltage:: | 20.50 A |
| Peak current:: | 87.00 A |
| Rated speed (RPM):: | 3000 rpm |
| Rated voltage:: | 400 V |
| Moment of inertia:: | 34.00 kgcm² |
| Brake:: | No |
| Feedback:: | 1 = Endat2.2 inductive single-turn |
| Motor connection:: | Angled swivel connector |
| Connection direction:: | To A-end |
| Cooling:: | 2 = Water cooler |
| Type of motor shaft:: | without feather key |
| Longueur d'arbre:: | 58 mm |
| Flange dimension:: | 145 mm |
| Overall motor length:: | 226 mm |
| Centering diameter:: | 130 mm |
| Pitch circle diameter:: | 165 mm |
| Number of poles:: | 14 |
| Protection type, housing:: | IP56 |
| Gross weight:: | 21300 g |
| Net weight:: | 18300 g |
