Product
Pilz
777148
PZE 9P 24VACDC 24-240VACDC 8n/o 1n/c
Request a Quote

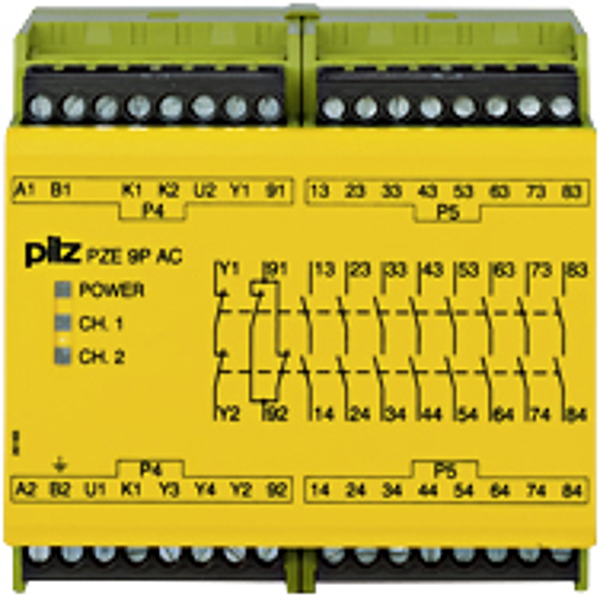

Image copyright: Pilz
Pilz 777148
PZE 9P 24VACDC 24-240VACDC 8n/o 1n/c
Contact expansion Inputs: 1-/2-channel wiring with/without, detection of shorts across contacts Outputs: 8 N/O, 1 N/C. UB 24 - 240. V AC/DC, width: 90 mm, plug-in terminals of screw type. Contact block, for contact expansion in connection with safety-related control, components.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Instantaneous contact expansion |
| Operating modes:: | Single-channel, Dual-channel, Detection of shorts across contacts, without detection of shorts across contacts |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 - 240,0 |
| Supply voltage type:: | AC/DC |
| Supply voltage 2 (V):: | 24 |
| Supply voltage type 2:: | AC/DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 8 |
| Number of delayed safety contacts:: | 0 |
| Number of auxiliary contacts:: | 1 |
| Max. current at DC13 I (6 cycles/min):: | 7.0 A |
| Voltage at AC15:: | 230 V |
| Width dimension:: | 90.0 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 465 g |
| Net weight:: | 455 g |
| Ambient temperature:: | -10 - 55 °C |
