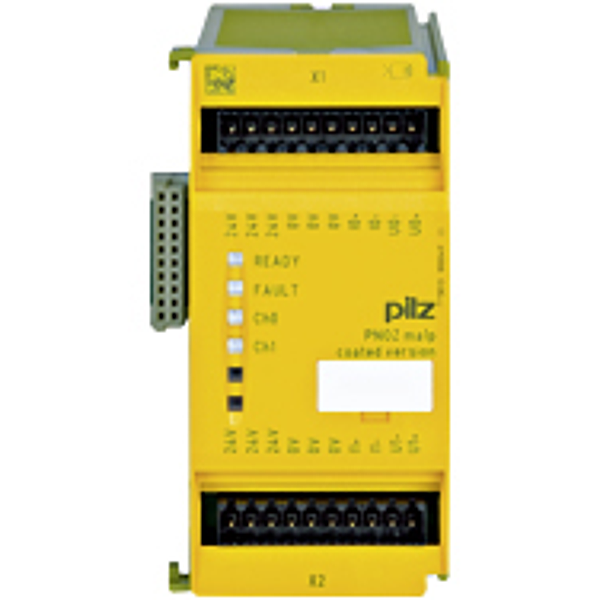

Pilz 773813
PNOZ ma1p coated version
Configurable safety system PNOZmulti expansion module for extended, environmental conditions, 2 safe analogue inputs.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, BG, EAC (Eurasian), TÜV, CCC |
| Number of analogue inputs:: | 2 |
| Supply voltage (V):: | 24,0 |
| Power consumption DC:: | 2.0 W |
| Version for extreme environ. conditions:: | Extended temperature range |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 215 g |
| Net weight:: | 196 g |
| Ambient temperature:: | -25 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
