Product
Pilz
773727
PNOZ mc6p CANopen coated version
Request a Quote
Image copyright: Pilz

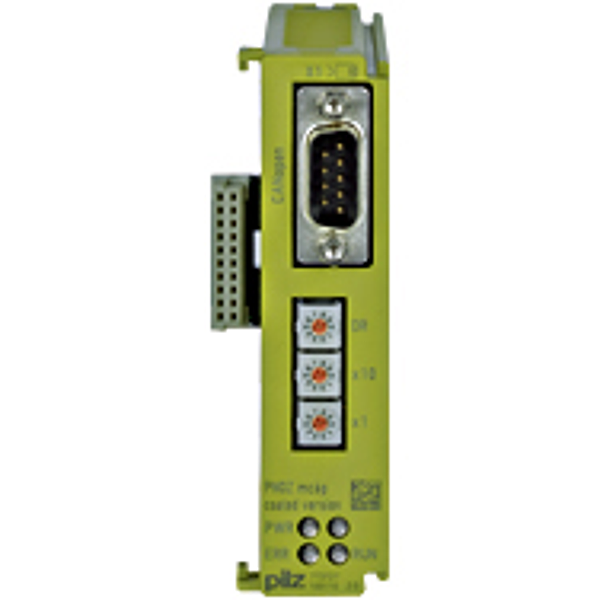

Pilz 773727
PNOZ mc6p CANopen coated version
Configurable safety system PNOZmulti expansion module for extended, environmental conditions, communication interface CANopen.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC, KCC |
| Fieldbus interface:: | CANopen |
| Fieldbus connection:: | Male 9-pin D-Sub connector |
| Fieldbus type:: | Slave |
| Transmission rate:: | 1 MBit/s, 10 kbit/s, 125 kBit/s, 20 kbit/s, 250 kBit/s, 50 kbit/s, 500 kBit/s, 800 kbit/s |
| Version for extreme environ. conditions:: | Extended temperature range |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 119.0 mm |
| Gross weight:: | 163 g |
| Net weight:: | 145 g |
| Ambient temperature:: | 0 - 50 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
