Product
Pilz
761120
PMD s20 C 24-240VAC/DC 10-200k / 2U
Request a Quote

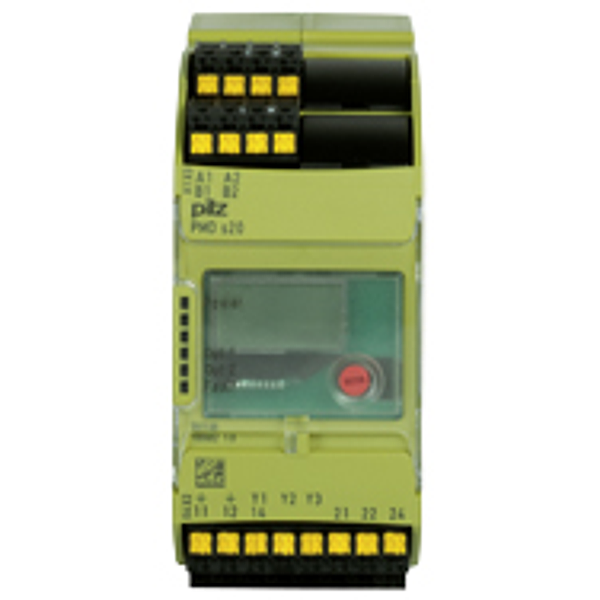

Image copyright: Pilz
Pilz 761120
PMD s20 C 24-240VAC/DC 10-200k / 2U
Insulation monitor in Sigma housing for monitoring the insulation of, galvanically isolated supplies. Limit values can be set via display,, can be saved on chip card. Relay output: 2 switch contacts. Analogue, output: Current 4 - 20 mA and 0 - 10 V DC, supply voltage: 24 - 240 V. AC/DC, Connection via spring-loaded terminals.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed |
| Application options:: | Insulation monitor, Earth fault monitor |
| Supply voltage (V):: | 24,0 - 240,0 |
| Supply voltage type:: | AC/DC |
| Insulation resistance:: | 10 ... 200 kOhm |
| Max. cable length unshielded:: | 0 ... 400 V |
| Protection type, housing:: | IP40 |
| Terminal type:: | Spring-loaded terminal |
| Terminal style:: | Plug-in |
| Operating modes:: | Normally de-energised mode, Fault non-latching, Fault latching, Normally energised mode, Automatic reset, Manual reset, Test mode, Normal operation |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 98.0 mm |
| Depth dimension:: | 120.0 mm |
| Gross weight:: | 330 g |
| Net weight:: | 270 g |
| Ambient temperature:: | -10 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
