Product
Pilz
584200
PSENvip E
Request a Quote

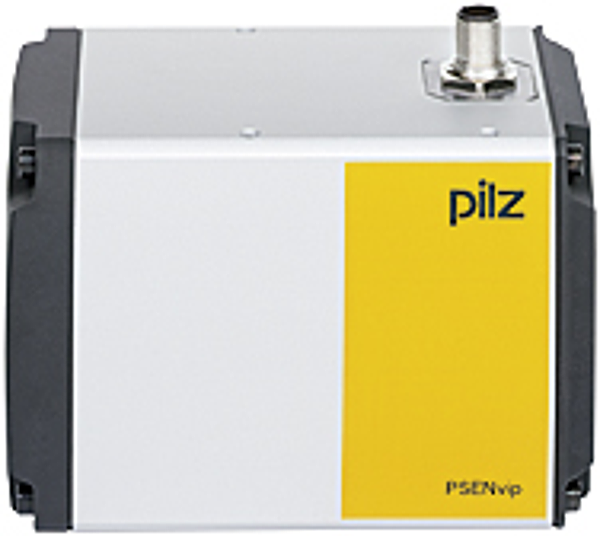

Image copyright: Pilz
Pilz 584200
PSENvip E
PSENvip sender.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, TÜV |
| Operating range (m):: | 0,1 - 13,0 |
| Number of inputs:: | 2 |
| Application in accordance with:: | CLC/TS 61496-2, EN 61496-1, EN ISO 13849-1, IEC 61508 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Protection type, housing:: | IP54 |
| Width dimension:: | 95.0 mm |
| Height dimension:: | 90.0 mm |
| Depth dimension:: | 136.0 mm |
| Gross weight:: | 1250 g |
| Net weight:: | 1000 g |
| Ambient temperature:: | 0 - 50 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
