Product
Pilz
570301
PSEN rs1.0-175
Request a Quote
Image copyright: Pilz

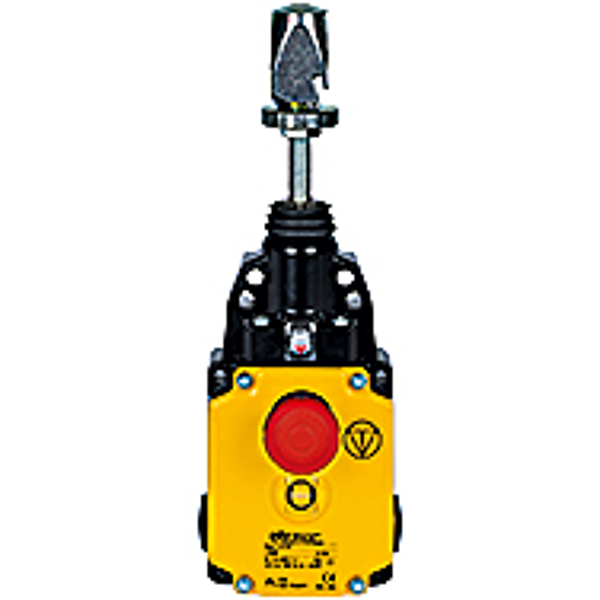

Pilz 570301
PSEN rs1.0-175
Rope pull switch, incl. E-STOP pushbutton, metal housing, 2 x N/C + 2, x N/O contacts , 175 N max. spring force.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, BG, cCSAus |
| Number of N/O:: | 2 |
| Number of N/C:: | 2 |
| Voltage at AC15:: | 240 V |
| Max. current at AC15:: | 3.0 A |
| Housing material:: | Zn die cast |
| Max. rope length:: | 37 m |
| Width dimension:: | 282.0 mm |
| Height dimension:: | 88.0 mm |
| Depth dimension:: | 90.1 mm |
| Gross weight:: | 1052 g |
| Net weight:: | 933 g |
| Ambient temperature:: | -30 - 80 °C |
