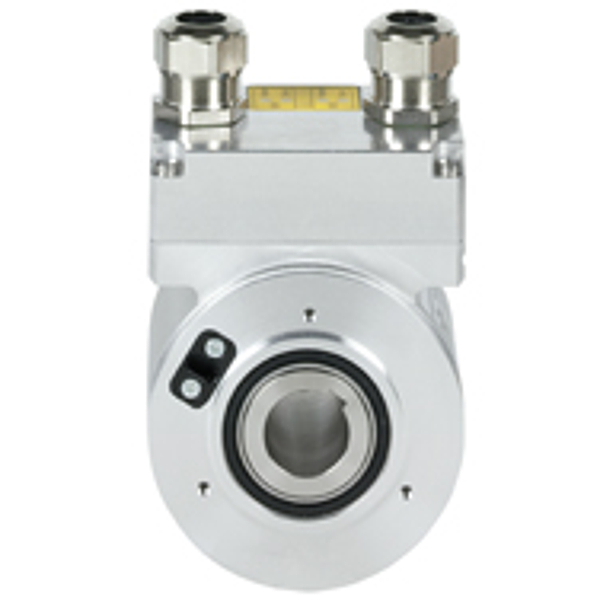

Pilz 544011
PSEN enc s1 eCAM
Absolute rotary encoder, single-turn, with two redundant SSi, interfaces, continuous hollow shaft 20 mm.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Scanning principle:: | Optical, magnetic |
| Type of motor shaft:: | Hollow shaft |
| Max. speed:: | 3000 1/min |
| Interface (absolute):: | SSI |
| Interface (incremental):: | TTL |
| Supply voltage (V):: | 24,0 |
| Connection type:: | Klemmen |
| Width dimension:: | 75.0 mm |
| Height dimension:: | 125.0 mm |
| Depth dimension:: | 75.0 mm |
| Gross weight:: | 1400 g |
| Net weight:: | 1000 g |
| Ambient temperature:: | -20 - 70 °C |
