Product
Pilz
522126
PSEN 2.1a-20/8mm/5m /1switch
Request a Quote
Image copyright: Pilz

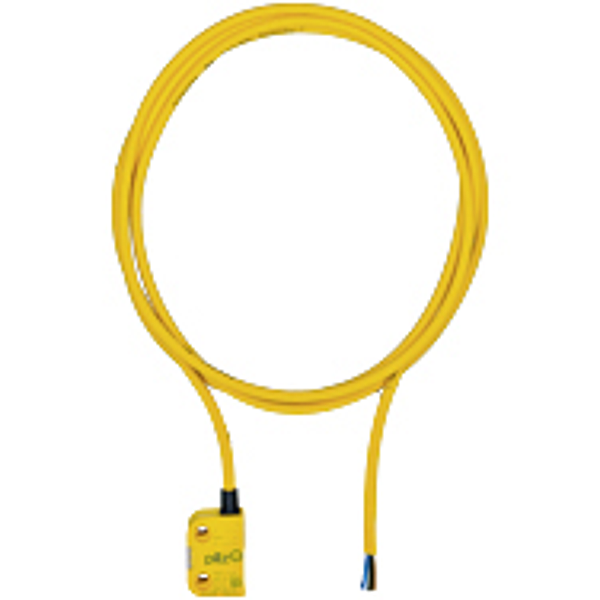

Pilz 522126
PSEN 2.1a-20/8mm/5m /1switch
Magnetic safety switch 1NO/1NC, square design, with 5 m cable (PUR). IP6K9K, operating distance 8 mm, height design 13 mm PU = 1 piece, without actuator.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
| Sensor principle:: | magnetic |
| Number of N/O:: | 1 |
| Number of N/C:: | 1 |
| Max. current of safe contacts:: | 0.01 A |
| Connection type:: | 5m Kabel |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 26.0 mm |
| Protection type, housing:: | IP67, IP69 |
| Status indicator:: | Without LED |
| Design:: | square |
| Width dimension:: | 26.0 mm |
| Height dimension:: | 36.0 mm |
| Depth dimension:: | 13.0 mm |
| Gross weight:: | 192 g |
| Net weight:: | 150 g |
| Ambient temperature:: | -25 - 70 °C |
| Operating modes:: | Single connection |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
