Product
Pilz
505225
PSEN 1.2p-25/PSEN 1.2-20/8mm/ATEX/ix1
Request a Quote
Image copyright: Pilz

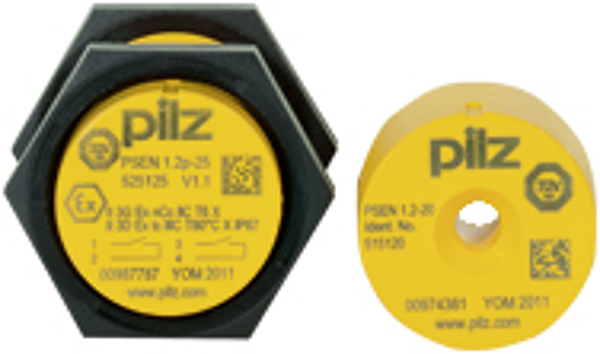

Pilz 505225
PSEN 1.2p-25/PSEN 1.2-20/8mm/ATEX/ix1
Magnetic safety switch 2 N/O, 4-pin M8 male connector, round M30, design IP67, operating distance 8 mm, for applications with PSEN ix1. PU = 1 piece with actuator, ATEX approval.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material:: | PBT |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), ATEX, TÜV, ECOLAB, electrosuisse |
| Sensor principle:: | magnetic |
| Number of N/O:: | 2 |
| Max. current at AC1:: | 0.0 A |
| Number of auxiliary contacts:: | 0 |
| Connection type:: | M8, 4pol. male |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 26.0 mm |
| Protection type, housing:: | IP65, IP67 |
| Status indicator:: | Without LED |
| Design:: | Round |
| Width dimension:: | 30.0 mm |
| Height dimension:: | 30.0 mm |
| Depth dimension:: | 42.7 mm |
| Gross weight:: | 47 g |
| Net weight:: | 36 g |
| Ambient temperature:: | -10 - 55 °C |
| Operating modes:: | Series connection |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
