Pilz
504228
PSEN 1.1a-22/PSEN 1.1-20 /8mm/5m/ix1/1un
Request a Quote

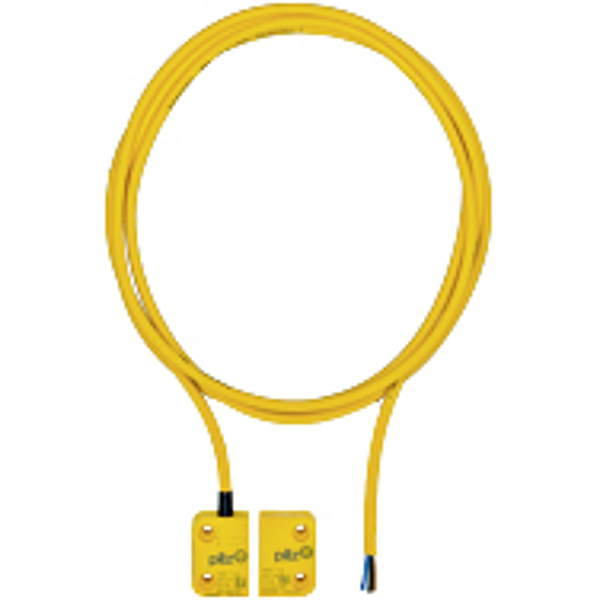

Image copyright: Pilz
Pilz 504228
PSEN 1.1a-22/PSEN 1.1-20 /8mm/5m/ix1/1un
Magnetic safety switch 2 N/O, square design. Height design 13 mm. IP6K9K, operating distance 8 mm, for applications with PSEN ix1 PU = 1, piece with actuator, with 5 m cable (PUR).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material:: | PBT |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, ECOLAB |
| Sensor principle:: | magnetic |
| Number of N/O:: | 2 |
| Connection type:: | 5m Kabel |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 26.0 mm |
| Protection type, housing:: | IP67, IP69 |
| Status indicator:: | Without LED |
| Design:: | square |
| Width dimension:: | 26.0 mm |
| Height dimension:: | 36.0 mm |
| Depth dimension:: | 13.0 mm |
| Gross weight:: | 210 g |
| Net weight:: | 192 g |
| Ambient temperature:: | -10 - 70 °C |
| Operating modes:: | Series connection |
