Product
Pilz
502224
PSEN 2.1p-24/PSEN2.1-20/8mm/LED/EX/1unit
Request a Quote
Image copyright: Pilz

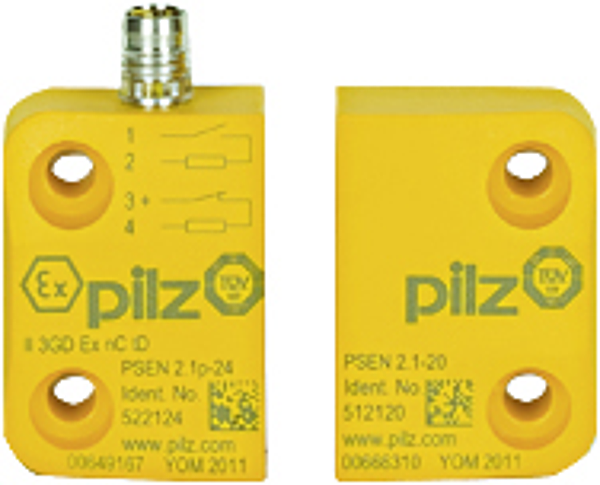

Pilz 502224
PSEN 2.1p-24/PSEN2.1-20/8mm/LED/EX/1unit
Magnetic safety switch 1NO/1NC, 4-pin M8 male connector with LED, square, design. IP67, operating distance 8mm, height design 13 mm PU = 1 piece, with actuator; ATEX approval.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), ATEX, TÜV, ECOLAB, electrosuisse |
| Sensor principle:: | magnetic |
| Number of N/O:: | 1 |
| Number of N/C:: | 1 |
| Max. current of safe contacts:: | 0.01 A |
| Connection type:: | M8, 4pol. male |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 26.0 mm |
| Protection type, housing:: | IP65, IP67 |
| Status indicator:: | With LED |
| Design:: | square |
| Width dimension:: | 26.0 mm |
| Height dimension:: | 45.0 mm |
| Depth dimension:: | 13.0 mm |
| Gross weight:: | 42 g |
| Net weight:: | 35 g |
| Ambient temperature:: | -25 - 55 °C |
| Operating modes:: | Single connection |
