Product
Pilz
400620
PIT es Set6.1: es6.10 / 2n/c
Request a Quote
Image copyright: Pilz
Pilz 400620
PIT es Set6.1: es6.10 / 2n/c

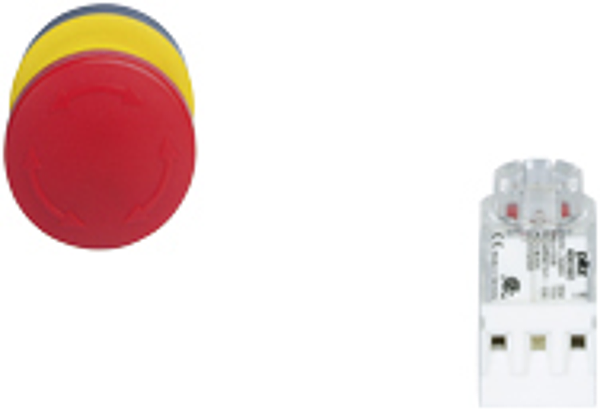

PITestop E-STOP/contact block set consisting of E-STOP pushbutton, without logo and contact block 2 N/C, terminals of screw type.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, TÜV, cCSAus |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Printing symbol:: | None |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | No |
| Terminal type:: | Screw terminal |
| Number of N/C:: | 2 |
| Protection type, housing:: | IP65 |
| Mounting type:: | Any |
| Diameter of mounting cut-out:: | 22.3 mm |
| Width dimension:: | 28.0 mm |
| Height dimension:: | 80.0 mm |
| Depth dimension:: | 28.0 mm |
| Gross weight:: | 35 g |
| Net weight:: | 33 g |
| Ambient temperature:: | -30 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
