Pilz
400443
PIT es Set8s-5
Request a Quote
Image copyright: Pilz
Pilz 400443
PIT es Set8s-5

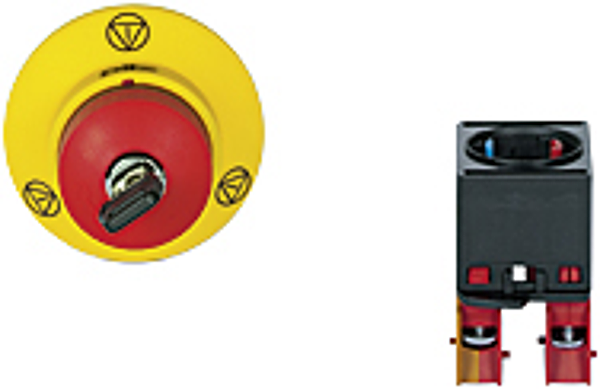

PITestop E-STOP/contact block set consisting of E-STOP pushbutton, key switch) with E-STOP symbol and contact block with monitoring. 2 N/C, terminals of screw type.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Key |
| Actuator:: | Key switch |
| Printing symbol:: | Pilz logo and E-STOP symbol |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | Yes |
| Terminal type:: | Screw terminal |
| Number of N/C:: | 2 |
| Protection type, housing:: | IP65 |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Width dimension:: | 55.0 mm |
| Height dimension:: | 100.0 mm |
| Gross weight:: | 91 g |
| Net weight:: | 78 g |
| Ambient temperature:: | -30 - 70 °C |
