Pilz
400311
PIT esc3c
Request a Quote
Image copyright: Pilz

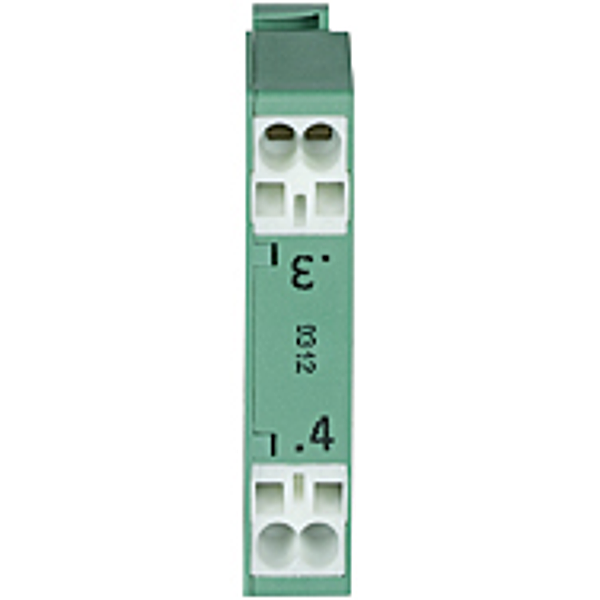

Pilz 400311
PIT esc3c
PITestop contact block 1 N/O with spring-loaded terminals.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, EAC (Eurasian), TÜV, CSA |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Terminal type:: | Spring-loaded terminal |
| Self-monitored:: | No |
| Number of N/O:: | 1 |
| Max. current at AC15:: | 3.0 A |
| Voltage at AC15:: | 250 V |
| Max. current at DC13 I (6 cycles/min):: | 2.0 A |
| Voltage at DC13:: | 24 V |
| Width dimension:: | 44.0 mm |
| Height dimension:: | 30.0 mm |
| Depth dimension:: | 10.0 mm |
| Gross weight:: | 11 g |
| Net weight:: | 9 g |
| Ambient temperature:: | -25 - 55 °C |
