Product
Pilz
312592
PSSu E PS-P +/-15V
Request a Quote

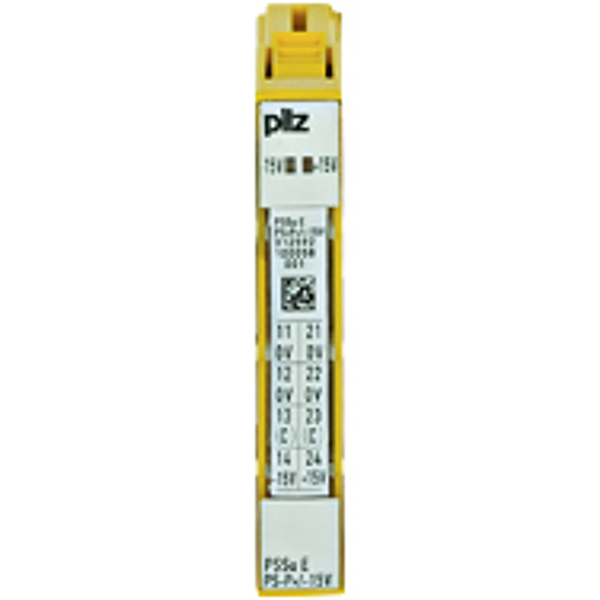

Image copyright: Pilz
Pilz 312592
PSSu E PS-P +/-15V
Electronic module for power supply, periphery +/- 15 V.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, BG, TÜV |
| Application range:: | Standard |
| Power consumption DC:: | 12.0 W |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Purpose of supply voltage:: | Input |
| Permitted base modules:: | PSSu BP 1/12C, PSSu BP 1/12S, PSSu BP 1/8C, PSSu BP 1/8S, PSSu BP-C 1/12C, PSSu BP-C 1/12S |
| Width dimension:: | 12.6 mm |
| Height dimension:: | 76.0 mm |
| Depth dimension:: | 60.2 mm |
| Gross weight:: | 55 g |
| Net weight:: | 40 g |
| Ambient temperature:: | 0 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
