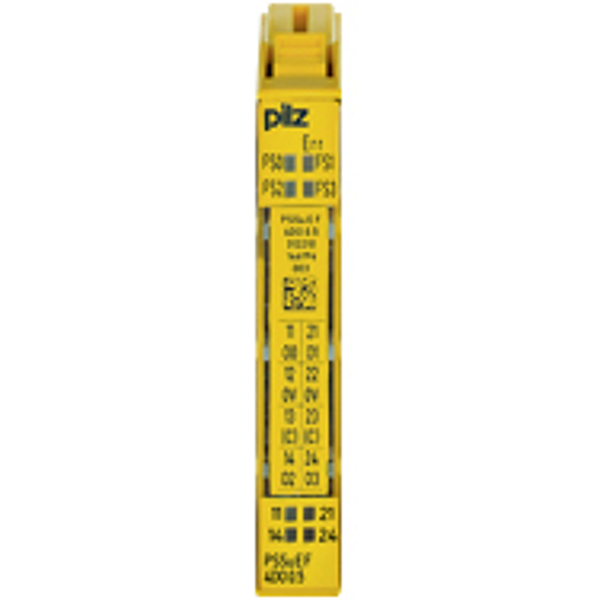

Pilz 312210
PSSu E F 4DO 0.5
Electronic module digital inputs and outputs, with failsafe function,. 4 outputs, 1-pole 0.5 A.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA |
| Application range:: | Failsafe |
| Positive switching 1-pole SC output:: | 4 |
| Protection type, housing:: | IP20 |
| Permitted base modules:: | PSSu BP 1/12C, PSSu BP 1/12S, PSSu BP 1/8C, PSSu BP 1/8S, PSSu BP-C 1/8C, PSSu BP-C 1/8S, PSSu BP-C1 1/12C, PSSu BP-C1 1/12S |
| Width dimension:: | 12.6 mm |
| Height dimension:: | 76.0 mm |
| Depth dimension:: | 60.2 mm |
| Gross weight:: | 44 g |
| Net weight:: | 36 g |
| Ambient temperature:: | 0 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
