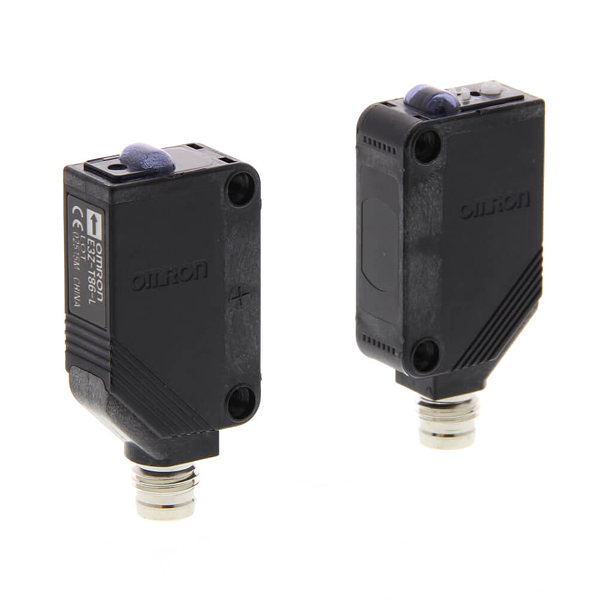

Omron E3Z 8008C
E3Z-T86-IL2
Photoelectric sensor, through-beam, 15 m, DC, PNP, M8 connector, IO-link, COM 2
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Shape: | Cuboid |
| Sensing method: | Through-beam |
| Sensing distance: | 15000 mm |
| Setting method: | IO-Link, Manual adjustment |
| Connection method: | Connector M8 - 4 pin |
| Output type: | IO-Link, PNP |
| Operation mode: | Dark-ON, Light-ON |
| IO-Link baud rate: | COM2 (38.4 kbps) |
| Response time: | 1 ms |
| Material housing: | PBT |
| Thread size: | Other |
| Width: | 10.8 mm |
| Height: | 31 mm |
| Depth: | 20 mm |
| Type of light: | Infrared light |
| Power supply voltage: | 10-30 V |
Logistic parameters
| ECCN: | |
| Country of Origin: | CHN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
