Product
Omron
E3Z 7537C
E3Z-R86-4
Request a Quote
Image copyright: Omron

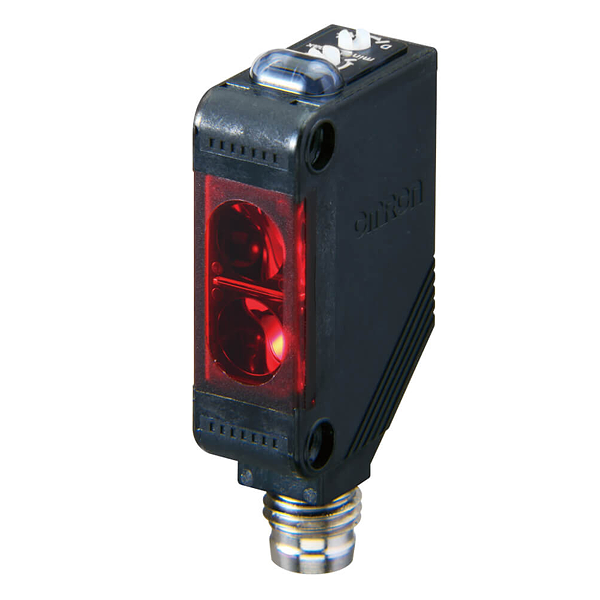

Omron E3Z 7537C
E3Z-R86-4
Photoelectric sensor, retro-reflective, compact square, infrared LED, 5m, PNP, L-on/D-on selectable, M8-4pin connector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Shape: | Cuboid |
| Sensing method: | Retro-reflective |
| Sensing distance: | 5000 mm |
| Sensing distance (min.): | 100 mm |
| Setting method: | Manual adjustment |
| Connection method: | Connector M8 - 4 pin |
| Output type: | PNP |
| Operation mode: | Dark-ON, Light-ON |
| Response time: | 1 ms |
| Material housing: | PBT |
| Thread size: | Other |
| Width: | 10.8 mm |
| Height: | 31 mm |
| Depth: | 20 mm |
| Type of light: | Infrared light |
| Power supply voltage: | 12-24 V |
| Features: | Without M.S.R. |
Logistic parameters
| ECCN: | |
| Country of Origin: | CHN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
