Product
Omron
E3JK7149A
E3JK-DP13 2M
Request a Quote
Image copyright: Omron

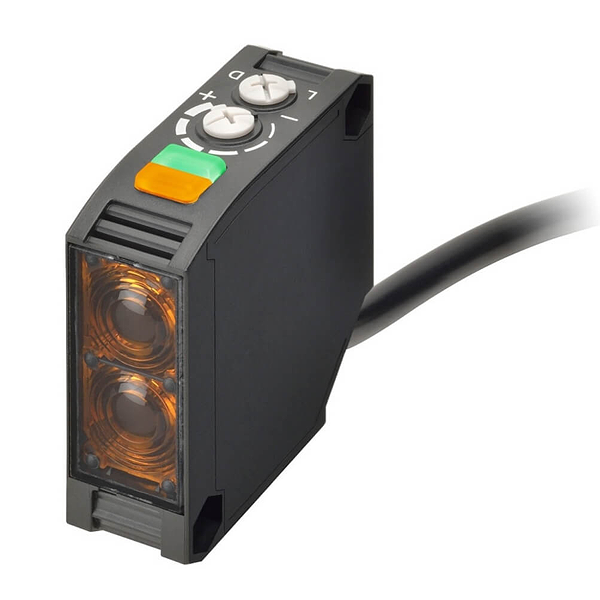

Omron E3JK7149A
E3JK-DP13 2M
Photoelectric sensor, square body, IR LED , diffuse, 2.5m, PNP, L-ON/D-ON selectable, 2m cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Shape: | Cuboid |
| Sensing method: | Diffuse reflective |
| Sensing distance: | 2500 mm |
| Setting method: | Manual adjustment |
| Connection method: | Cable |
| Cable length: | 2 m |
| Output type: | PNP |
| Operation mode: | Dark-ON, Light-ON |
| Response time: | 1 ms |
| Material housing: | ABS |
| Thread size: | Other |
| Width: | 18 mm |
| Height: | 52 mm |
| Depth: | 50 mm |
| Type of light: | Infrared light |
| Power supply voltage: | 10-30 V |
Logistic parameters
| ECCN: | |
| Country of Origin: | CHN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
