Product
Leuze electronic
66500200
MLD-M003
Request a Quote
Image copyright: Leuze electronic
Leuze electronic 66500200
MLD-M003

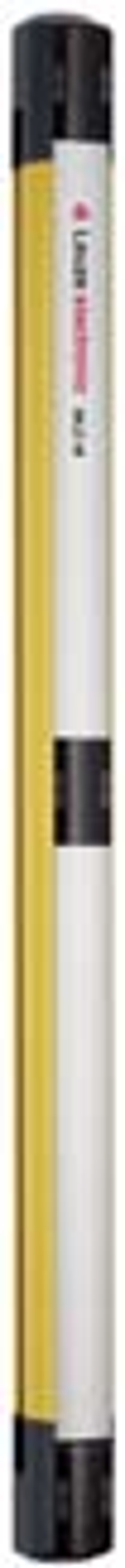

MLD-M003 - Deflecting mirror
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Achievable range: | 0 ... 6 m |
| Number of beams: | 3 Piece(s) |
| Beam spacing: | 400 mm |
| Dimension (W x H x L): | 52 mm x 894 mm x 64.7 mm |
| Housing material: | Metal, Aluminum |
| Lens cover material: | Plastic / PMMA |
| Material of end caps: | Diecast zinc |
| Net weight: | 2,000 g |
| Housing color: | Yellow, RAL 1021 |
| Type of fastening: | Groove mounting, Mounting on Device Column, Swivel mount |
| Ambient temperature, operation: | -30 ... 55 °C |
| Ambient temperature, storage: | -40 ... 75 °C |
| Relative humidity (non-condensing): | 0 ... 95 % |
| Customs tariff number: | 85389099 |
| eCl@ss 8.0: | 27279207 |
| eCl@ss 9.0: | 27273605 |
| ETIM 5.0: | EC002467 |
| ETIM 6.0: | EC002467 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 2.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
