Product
Leuze electronic
50140174
KDS U-M12-5A-M12-5A-P1-003-25X
Request a Quote
Image copyright: Leuze electronic
Leuze electronic 50140174
KDS U-M12-5A-M12-5A-P1-003-25X

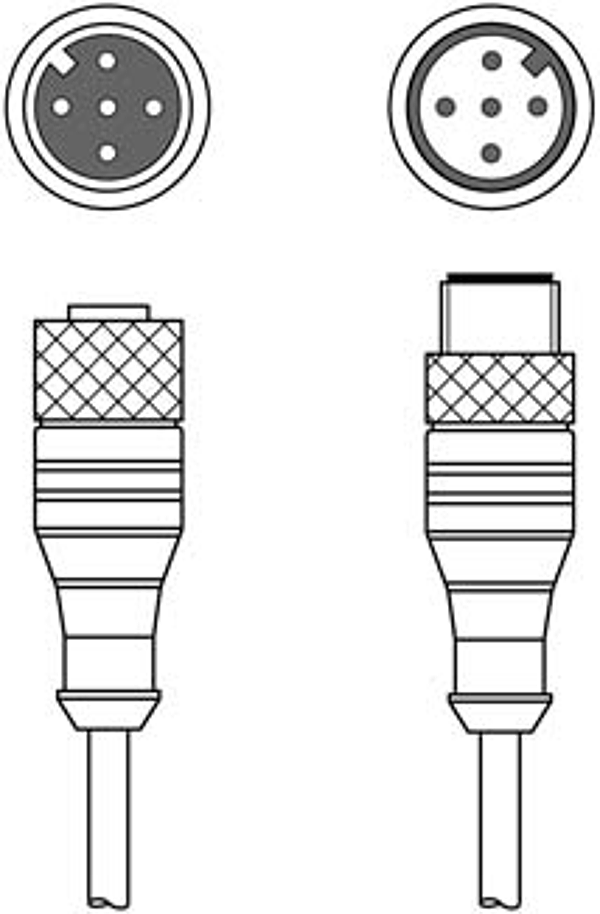

KDS U-M12-5A-M12-5A-P1-003-25X - Interconnection cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Suitable for: | Adapter for changing from ODSL9 to ODS9 |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Version: | Axial |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Version: | Axial |
| Sheathing color: | Black |
| Shielded: | No |
| Cable, crossed: | Connection 1, pin 2 connection 2, pin 5 |
| Silicone-free: | Yes |
| Cable design: | Interconnection cable |
| Cable length: | 300 mm |
| Sheathing material: | PUR |
| Suitability for drag chains: | No |
| Properties of the outer sheathing: | Free of CFC, cadmium, silicone and lead, easily machine-processable |
| Resistance of the outer sheathing: | Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1 |
| Width across flats: | 13 mm |
| Degree of protection: | IP 65, IP 67 |
| Customs tariff number: | 85444290 |
| eCl@ss 8.0: | 27279218 |
| eCl@ss 9.0: | 27060311 |
| ETIM 5.0: | EC001855 |
| ETIM 6.0: | EC001855 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
