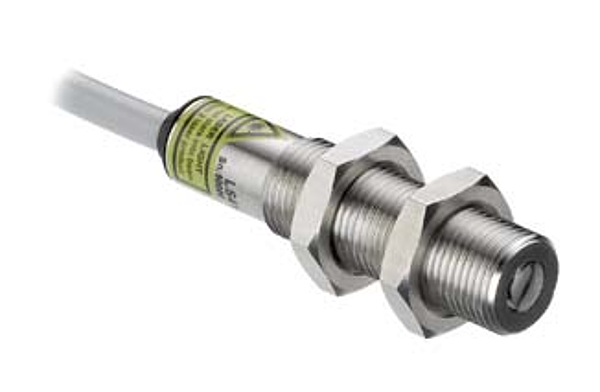

Image copyright: Leuze electronic
Leuze electronic 50140165
LS412BL2/D
LS412BL2/D - Throughbeam photoelectric sensor transmitter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 412B |
| Operating principle: | Throughbeam principle |
| Device type: | Transmitter |
| Special version: | Deactivation input |
| Operating range: | 0 ... 50 m |
| Light source: | Laser, Red |
| Laser class: | 2, IEC / EN 60825-1:2014 |
| Light spot size [at sensor distance]: | 2 mm [1,000 mm] |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 36 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 20 %, From UB |
| Open-circuit current: | 0 ... 10 mA |
| Number of deactivation inputs: | 1 Piece(s) |
| Function: | Voltage supply, Signal IN |
| Type of connection: | Cable |
| Cable length: | 2,000 mm |
| Number of conductors: | 3 -wire |
| Thread size: | M12 x 1 mm |
| Dimension (Ø x L): | 12 mm x 51 mm |
| Housing material: | Stainless steel, V2A |
| Lens cover material: | Glass |
| Net weight: | 100 g |
| Ambient temperature, operation: | -10 ... 50 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270901 |
| eCl@ss 9.0: | 27270901 |
| ETIM 5.0: | EC002716 |
| ETIM 6.0: | EC002716 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Schweiz |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
