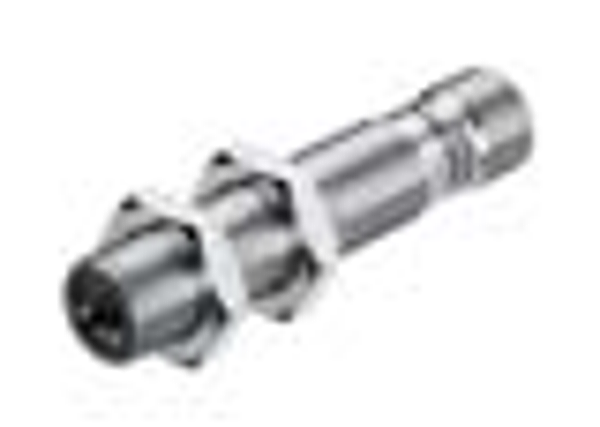

Image copyright: Leuze electronic
Leuze electronic 50140150
LS412B/DX-M12
LS412B/DX-M12 - Throughbeam photoelectric sensor transmitter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 412B |
| Operating principle: | Throughbeam principle |
| Device type: | Transmitter |
| Special version: | Deactivation input |
| Operating range: | 0 ... 10 m |
| Light source: | LED, Red |
| Protective circuit: | Short circuit protected, Polarity reversal protection |
| Supply voltage UB: | 10 ... 36 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 20 %, From UB |
| Open-circuit current: | 0 ... 15 mA |
| Number of deactivation inputs: | 1 Piece(s) |
| Function: | Signal IN, Voltage supply |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Thread size: | M12 x 1 mm |
| Dimension (Ø x L): | 12 mm x 60 mm |
| Housing material: | Metal, Chromed brass |
| Lens cover material: | Glass |
| Net weight: | 32 g |
| Ambient temperature, operation: | -25 ... 55 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270901 |
| eCl@ss 9.0: | 27270901 |
| ETIM 5.0: | EC002716 |
| ETIM 6.0: | EC002716 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Sri Lanka |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
