Product
Leuze electronic
50140144
PRK412B/4
Request a Quote

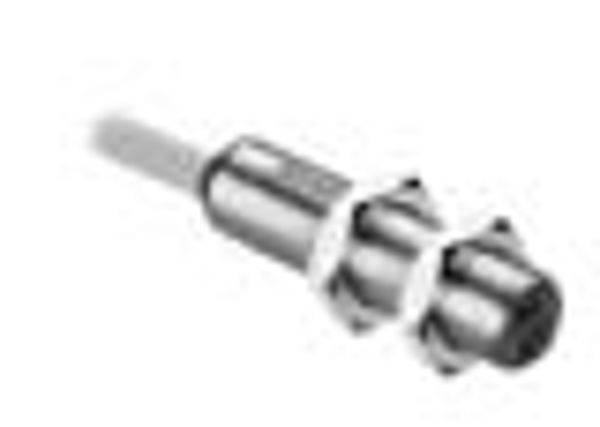

Image copyright: Leuze electronic
Leuze electronic 50140144
PRK412B/4
PRK412B/4 - Polarized retro-reflective photoelectric sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 412B |
| Operating principle: | Reflection principle |
| Operating range: | 0.02 ... 1.8 m, With reflector TK(S) 100x100 |
| Operating range limit: | 0.02 ... 2.3 m, With reflector TK(S) 100x100 |
| Light source: | LED, Red |
| Protective circuit: | Short circuit protected, Polarity reversal protection |
| Supply voltage UB: | 10 ... 36 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 20 %, From UB |
| Open-circuit current: | 0 ... 15 mA |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Light switching |
| Switching frequency: | 1,000 Hz |
| Response time: | 0.5 ms |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Cable |
| Cable length: | 2,000 mm |
| Number of conductors: | 3 -wire |
| Thread size: | M12 x 1 mm |
| Dimension (Ø x L): | 12 mm x 51 mm |
| Housing material: | Metal, Chromed brass |
| Lens cover material: | Glass |
| Net weight: | 100 g |
| Ambient temperature, operation: | -25 ... 55 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270902 |
| eCl@ss 9.0: | 27270902 |
| ETIM 5.0: | EC002717 |
| ETIM 6.0: | EC002717 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Sri Lanka |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
