Product
Leuze electronic
50139771
KD U-M12-CA-P1-100
Request a Quote
Image copyright: Leuze electronic
Leuze electronic 50139771
KD U-M12-CA-P1-100

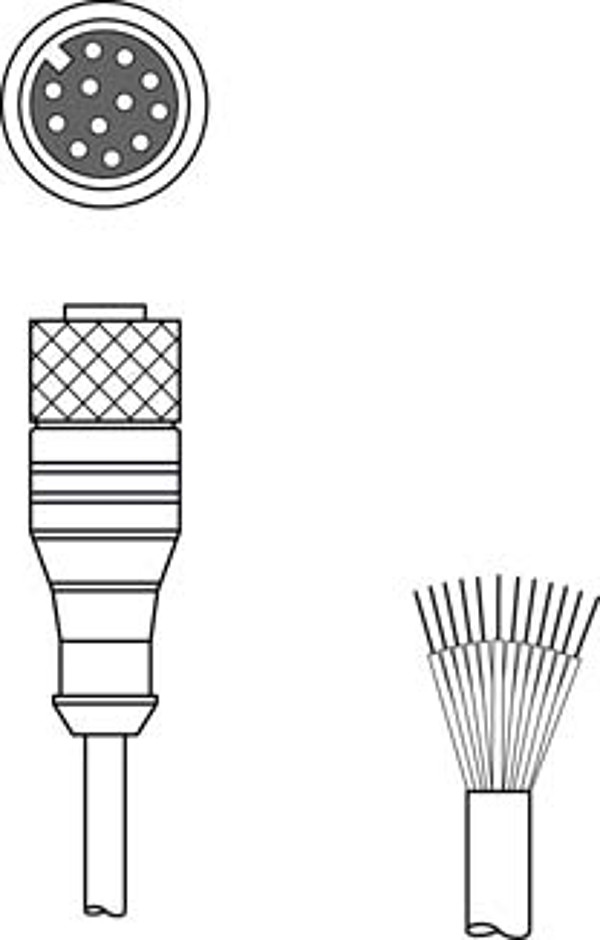

KD U-M12-CA-P1-100 - Connection cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Operating voltage: | Max. 30 V AC/DC |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Female |
| No. of pins: | 12 -pin |
| Encoding: | A-coded |
| Version: | Axial |
| Type of connection: | Open end |
| Number of conductors: | 12 Piece(s) |
| Sheathing color: | Black |
| Shielded: | No |
| Silicone-free: | Yes |
| Cable length: | 10,000 mm |
| Sheathing material: | PUR |
| Wire insulation: | PP |
| Suitability for drag chains: | Yes |
| Traverse rate: | Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s² |
| Properties of the outer sheathing: | Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable |
| Resistance of the outer sheathing: | Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Width across flats: | 13 mm |
| Bending cycles: | 2,000,000 Piece(s) |
| Bending radius, flexible laying, min.: | Min. 10 x cable diameter |
| Bending radius, stationary laying, min.: | Min. 5 x cable diameter |
| Ambient temperature, operation, flexible use: | -25 ... 85 °C |
| Ambient temperature, operation, stationary use: | -40 ... 85 °C |
| Degree of protection: | IP 67 |
| Certifications: | UL |
| Customs tariff number: | 85444290 |
| eCl@ss 8.0: | 27279218 |
| eCl@ss 9.0: | 27060311 |
| ETIM 5.0: | EC001855 |
| ETIM 6.0: | EC001855 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.43 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
