Product
Leuze electronic
50138252
A7-V1-MP1-DS-M7-T-100
Request a Quote

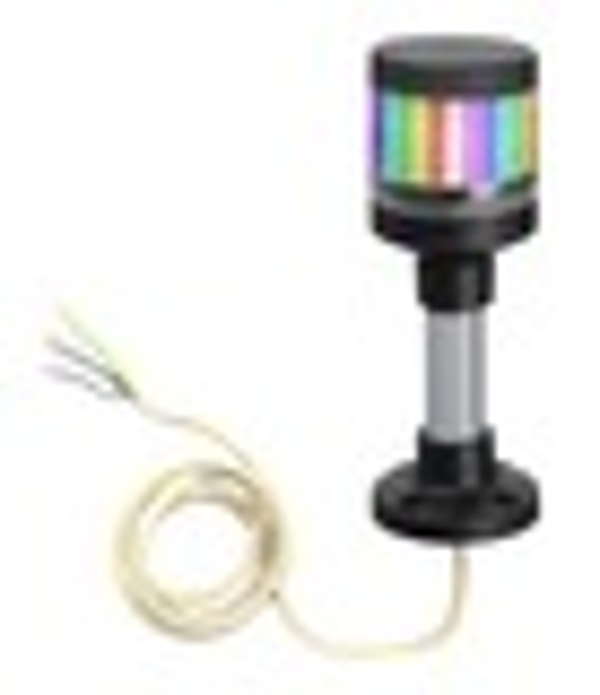

Image copyright: Leuze electronic
Leuze electronic 50138252
A7-V1-MP1-DS-M7-T-100
A7-V1-MP1-DS-M7-T-100 - Signaling column
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | A7 |
| Type of signaling: | Optical |
| Life expectancy: | > 100,000 h |
| Supply voltage UB: | 24 V, DC, 10 % |
| Current consumption, max.: | 70 mA |
| Number of connections: | 1 Piece(s) |
| Function: | Voltage supply, Light color programmable via actuation of wires |
| Type of connection: | Cable, soldered to lens / open end |
| Cable length: | 1,500 mm |
| Number of conductors: | 6 -wire |
| Design: | Cylindrical |
| Dimension (Ø x L): | 70 mm x 203 mm |
| Housing material: | Plastic, Aluminum, PC-ABS, Metal |
| Net weight: | 313 g |
| Housing color: | Black, Gray |
| Type of fastening, at system: | Screw type / horizontal |
| Type of illuminant: | LED/24V |
| Lens modules: | 1 piece |
| Display of the lens colors: | 7 colors can be selected |
| Signal image: | Continuous or flashing light |
| Lens colors: | Blue, Green, Pink, Red, Turquois, White, Yellow |
| Angle of radiation: | 360° |
| Degree of protection: | IP 66, Only when mounted on a housing with the same degree of protection |
| Certifications: | CE, CSA |
| Customs tariff number: | 85318070 |
| eCl@ss 8.0: | 27371220 |
| eCl@ss 9.0: | 27371220 |
| ETIM 5.0: | EC000232 |
| ETIM 6.0: | EC000232 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Indien |
| EAN: | |
| Weight: | 0.42 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
