Leuze electronic 50138102
KF-ETW-FU44-20

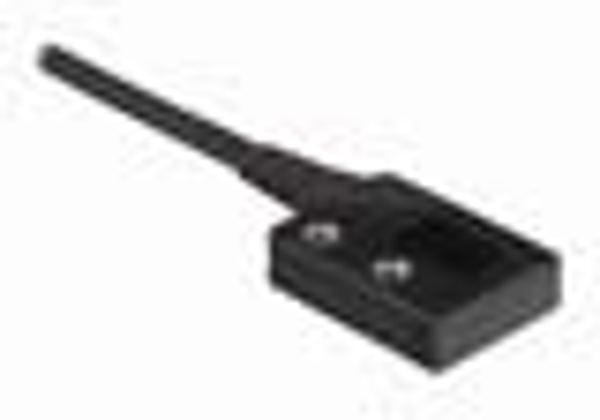

KF-ETW-FU44-20 - Plastic fiber optics type diffuse reflective
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | KF |
| Operating principle: | Diffuse reflection principle |
| Area of application: | General applications |
| Light beam exit: | Front |
| Fiber core: | Single fiber core |
| Minimum object diameter: | 0.1 mm |
| Fastening of the probe: | 2 x Ø 2.1mm |
| Smallest bending radius (moving): | R1 |
| Laying: | Highly flexible |
| Customs tariff number: | 90011090 |
| Fiber length: | 2,000 mm |
| Fiber sheathing material: | PE |
| ETIM 5.0: | EC002651 |
| ETIM 6.0: | EC002651 |
| Laying: | Highly flexible |
| Damping at λ = 650nm: | 210 dB/km |
| Ambient temperature, operation: | -55 ... 70 °C |
| Customs tariff number: | 90011090 |
| eCl@ss 8.0: | 27270905 |
| eCl@ss 9.0: | 27270905 |
| ETIM 5.0: | EC002651 |
| ETIM 6.0: | EC002651 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Taiwan |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
