Product
Leuze electronic
50137594
AMS 307i 120
Request a Quote

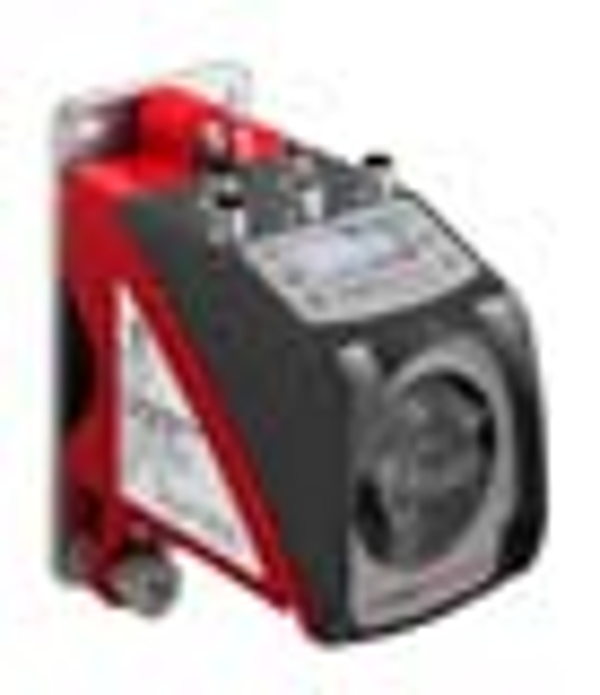

Image copyright: Leuze electronic
Leuze electronic 50137594
AMS 307i 120
AMS 307i 120 - Optical distance sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | AMS 300i |
| Application: | Collision protection of cranes / gantry cranes, Positioning of electroplating plants, Positioning of high-bay storage devices, Positioning of skillet systems and side-tracking skates |
| MTTF: | 31 years |
| Light source: | Laser, Red |
| Laser class: | 2, IEC/EN 60825-1:2007 |
| Measurement range: | 200 ... 120,000 mm |
| Accuracy: | 2 mm |
| Reproducibility (3 sigma): | 0.9 mm |
| Max. traverse rate: | 10 m/s |
| Supply voltage UB: | 18 ... 30 V, DC |
| Type: | SSI |
| Clock frequency: | 50 ... 800 kHz |
| Number of connections: | 3 Piece(s) |
| Function: | Signal IN, Signal OUT, Voltage supply |
| Type of connection: | Connector |
| Designation on device: | PWR |
| Thread size: | M12 |
| Type: | Male |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Function: | Data interface |
| Type of connection: | Connector |
| Designation on device: | SSI |
| Thread size: | M12 |
| Type: | Male |
| No. of pins: | 5 -pin |
| Encoding: | B-coded |
| Function: | Service interface |
| Type of connection: | Connector |
| Designation on device: | SERVICE |
| Thread size: | M12 |
| Type: | Female |
| No. of pins: | 5 -pin |
| Encoding: | A-coded |
| Design: | Cubic |
| Dimension (W x H x L): | 84 mm x 166.5 mm x 159 mm |
| Housing material: | Metal, Diecast zinc/aluminum |
| Net weight: | 2,450 g |
| Type of fastening: | Through-hole mounting |
| Type of display: | LED, LC Display |
| Operational controls: | Membrane keyboard |
| Ambient temperature, operation: | -5 ... 50 °C |
| Ambient temperature, storage: | -30 ... 70 °C |
| Relative humidity (non-condensing): | 90 % |
| Degree of protection: | IP 65 |
| Protection class: | III |
| Certifications: | c UL US |
| Customs tariff number: | 90318020 |
| eCl@ss 8.0: | 27270801 |
| eCl@ss 9.0: | 27270801 |
| ETIM 5.0: | EC001825 |
| ETIM 6.0: | EC001825 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 2.93 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
