Leuze electronic 50127101
TFM 06 1110.210

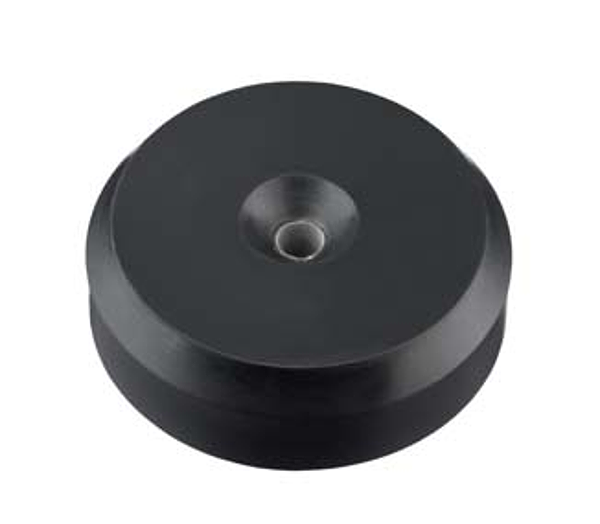

TFM 06 1110.210 - Transponder
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | TFM |
| Suitable for: | RFM |
| Chip: | I-CodeSLI |
| Memory access: | Read/Write |
| Memory size: | 112 B |
| Memory block: | 112 Piece(s) |
| Memory block size: | 4 B |
| Storage time: | 50 ms |
| Standards applied: | ISO 15693 |
| Design: | Disc |
| Thickness: | 10 mm |
| Outer diameter: | 56 mm |
| Inner diameter: | 5 mm |
| Housing material: | Plastic, PC |
| Net weight: | 20 g |
| Mounting: | On metal |
| Ambient temperature, operation: | -30 ... 60 °C |
| Ambient temperature, storage: | -30 ... 85 °C |
| Degree of protection: | IP 67 |
| Customs tariff number: | 85235200 |
| eCl@ss 8.0: | 27289290 |
| eCl@ss 9.0: | 27280402 |
| ETIM 5.0: | EC002996 |
| ETIM 6.0: | EC002996 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
