Product
Leuze electronic
50112155
S-M12A-ET
Request a Quote
Image copyright: Leuze electronic

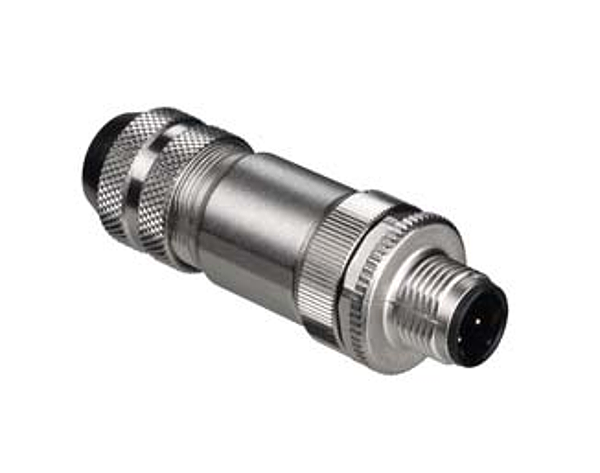

Leuze electronic 50112155
S-M12A-ET
S-M12A-ET - Connector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Suitable for interface: | Ethernet |
| Overvoltage category: | II |
| Rated operating current: | 4,000 mA |
| Rating voltage (DIN EN 60664-1): | 250 V |
| Rated impulse voltage (DIN EN 60664-1): | 2,500 V |
| Number of connections: | 1 Piece(s) |
| Type of connection: | Connector |
| Thread size: | M12 |
| Type: | Male |
| Material: | Metal |
| Handle body material: | Metal |
| No. of pins: | 4 -pin |
| Encoding: | D-coded |
| Version: | Axial |
| Lock: | Screw fitting |
| Connection cross sections: | 1 x 0.75 mm² |
| AWG: | 18 |
| Shielded: | Yes |
| Housing material: | Metal, Diecast zinc, chemically nickel-plated |
| Max. cable hole: | 6 ... 8 mm |
| Ambient temperature, operation: | -40 ... 85 °C |
| Degree of contamination: | 3, EN 60947-1 |
| Degree of protection: | IP 67 |
| Customs tariff number: | 85369010 |
| eCl@ss 8.0: | 27069190 |
| eCl@ss 9.0: | 27069190 |
| ETIM 5.0: | EC001578 |
| ETIM 6.0: | EC001578 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.05 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
