Image copyright: IPF

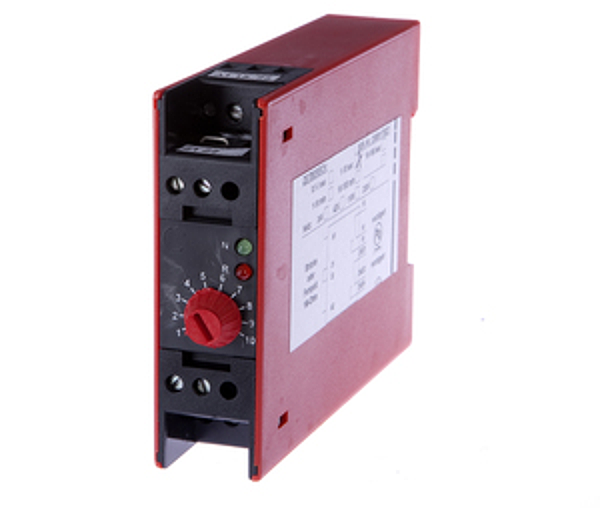

IPF ZE564454
Time stage, , 75x110x22mm, 1-10s, 230V AC, 2x Relay contact, Clamp 10pin, IP20, Plastic, Potentiometer
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Time stages, relays and signal converters. 230V AC,Relais,analog
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 75mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Width: | 22.5mm |
| Length: | 110mm |
| Ambient temperature: | -25 - 70°C |
| Voltage type: | AC |
| Number of pins: | 10 |
| Time range: | 1 - 10s |
| Type of electrical connection: | Clamps |
| Rated control supply voltage Us at AC 50HZ: | 230 - 230V |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 3000mA |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Readiness delay: | 20ms |
| Number of time ranges: | 1 |
| Type of signal processing: | Turn-on delay |
| Power consumption: | 2VA |
| Number of switching outputs: | 2 |
| Switching voltage: | 250V |
| Type of switching output: | Relay contact |
| Operating voltage: | 230 - 230V |
| Relative repeat accuracy: | 1% |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Voltage type for actuation: | AC |
| Decay time: | 10ms |
| Time adjustable via: | Potentiometer |
| Optional setting via external potentiometer: | True |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 600 |
| shipping weight: | 0.16kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85364900 |
