Product
IPF
WS574401
Request a Quote
Image copyright: IPF

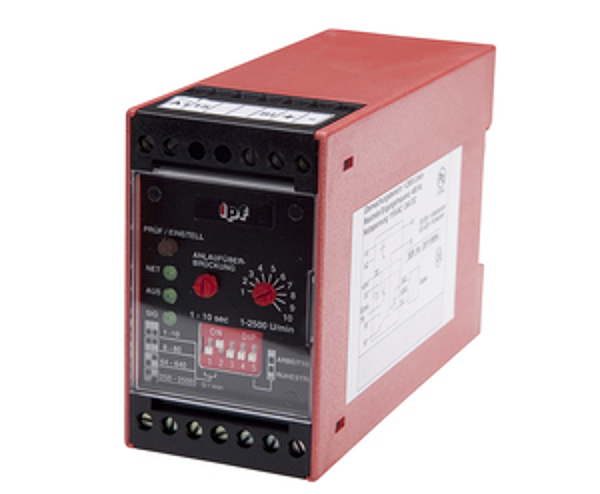

IPF WS574401
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 75mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Width: | 45mm |
| Depth: | 110mm |
| Ambient temperature: | -25 - 70°C |
| Storage temperature: | -20 - 70°C |
| Number of outputs: | 2 |
| Switching capacity: | 720VA |
| Switching voltage: | 250V |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 115 - 115V |
| Setting procedure: | Parameterization |
| Rated switching current: | 6000mA |
| Operating frequency: | 0.16 - 41.66Hz |
| Hysteresis: | 20% |
| Type of transistor output: | PNP |
| Type of transducer power supply voltage: | DC |
| Power consumption: | 3VA |
| Adjustment range: | 2500 - 1mm |
| Type of electrical connection: | Screw connection |
| Type of switching function: | Change-over contact |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Relative repeat accuracy: | 1% |
| Input voltage at DC: | 24 - 24V |
| Voltage type for actuation: | DC |
| Transducer power supply current: | 80mA |
| Start-up delay time: | 1 - 10s |
| Minimum pulse length: | 0ms |
| With transducer power supply: | yes |
| With start-up delay: | yes |
| eClass 7.0: | 27371811 |
| eClass 7.1: | 27371811 |
| eClass 8.0: | 27371811 |
| eClass 9.0: | 27371811 |
| eClass 9.1: | 27371811 |
| ETIM-6.0: | EC001448 |
| ETIM-7.0: | EC001448 |
| IPF Product Group: | 650 |
| shipping weight: | 0.29kg |
| packaging dimensions: | 76.0mm x 50mm x 121.0mm |
| customs tariff number: | 90292038 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
