Product
IPF
VR100021
Request a Quote

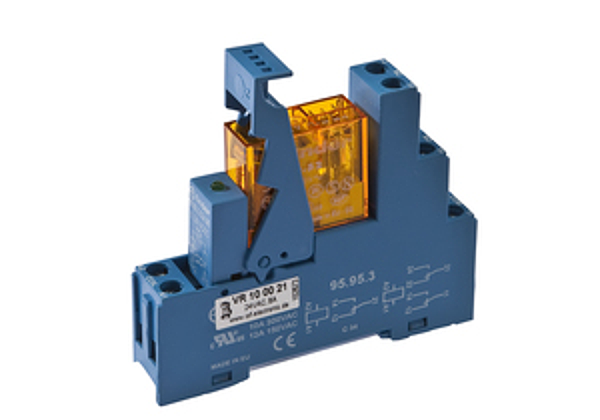

Image copyright: IPF
IPF VR100021
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 15.4mm |
| Design: | Cuboid |
| Housing material: | Plastic |
| Contact coating material: | Nickel |
| Contact material: | Silver |
| Height: | 78.6mm |
| Length: | 75mm |
| Ambient temperature: | -40 - 70°C |
| Degree of protection (IP): | IP40 |
| with retaining bracket: | yes |
| Switching capacity: | 2000VA |
| Switching frequency: | 40Hz |
| Rated control supply voltage Us at AC 50HZ: | 230 - 24V |
| Nominal measuring voltage: | 6000V |
| Connection type auxiliary circuit: | Screw connection |
| Decay time: | 15ms |
| Number of operating cycles: | 10000000 |
| Number of auxiliary contacts as change-over contact: | 2 |
| Type of switching output: | Relay contact |
| Switching voltage: | 5 - 250V |
| Rated switching current: | 8A |
| Response time: | 10ms |
| Operating range of the coil: | AC: 0.8 - 1.1 nominal voltage |
| eClass 7.0: | 27371001 |
| eClass 7.1: | 27371001 |
| eClass 8.0: | 27371001 |
| eClass 9.0: | 27371001 |
| eClass 9.1: | 27371001 |
| ETIM-6.0: | EC000196 |
| ETIM-7.0: | EC000196 |
| IPF Product Group: | 800 |
| shipping weight: | 0.07kg |
| packaging dimensions: | 100mm x 15.0mm x 175.0mm |
| customs tariff number: | 85364190 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
