Product
IPF
VKB0H025
Request a Quote
Image copyright: IPF

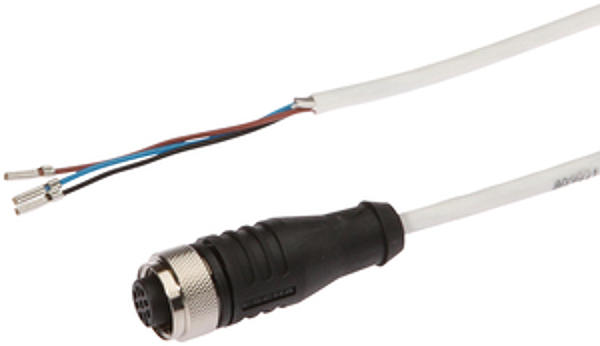

IPF VKB0H025
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | EV009612 |
| Cable length: | 20.00m |
| Number of cores: | 3 |
| Degree of protection (IP): | IP65 |
| Seawater-resistant: | yes |
| Cable infeed of A connection: | Straight |
| Wire cross section: | 0.34mm² |
| Perm. ambient temperature of cable, fixed cable: | -20 - 150°C |
| Material of cable sheath: | PTFE |
| Contact body material: | Brass |
| Wire assembly: | 7 x 0.254mm |
| Rated current: | 4A |
| Flow resistance: | 5mOhm |
| Number of pins of A connection: | 3 |
| Type of B electrical connection: | Free conductor end |
| Rated voltage: | 250V |
| Line diameter: | 3.8mm |
| Type of A electrical connection: | M12 |
| Type of plug-in contact, A connection: | Female (socket) |
| Flame retardant: | No |
| Suitable for trailing chain and torsion resistant: | no |
| IR-networked: | no |
| eClass 7.0: | 27279218 |
| eClass 7.1: | 27279218 |
| eClass 8.0: | 27279218 |
| eClass 9.0: | 27060311 |
| eClass 9.1: | 27060311 |
| ETIM-6.0: | EC001855 |
| ETIM-7.0: | EC001855 |
| IPF Product Group: | 853 |
| packaging dimensions: | 0.0mm x 0.0mm x 0.0mm |
| customs tariff number: | 85444290 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
