Product
IPF
VK03C991
Request a Quote
Image copyright: IPF

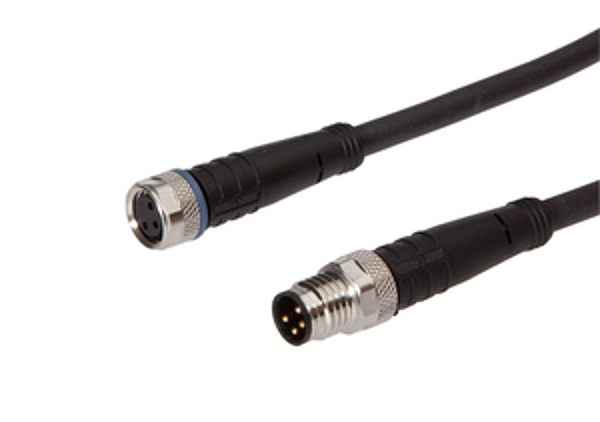

IPF VK03C991
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | EV005969 |
| Cable length: | 0.30m |
| Number of cores: | 3 |
| Degree of protection (IP): | IP67 |
| Cable infeed of A connection: | Straight |
| Wire cross section: | 0.34mm² |
| Perm. ambient temperature of cable, fixed cable: | -25 - 80°C |
| Material of cable sheath: | PUR (Polyurethane) |
| Suitable for trailing chain: | yes |
| Cable infeed of B connection: | Straight |
| Rated voltage: | 60V |
| Number of pins of B connection: | 4 |
| Type of B electrical connection: | M8 |
| Type of plug-in contact, B connection: | Male (plug) |
| Number of pins of A connection: | 3 |
| Type of A electrical connection: | M8 |
| Type of plug-in contact, A connection: | Female (socket) |
| Halogen-free: | yes |
| IR-networked: | no |
| Flame retardant: | In accordance with EN 60332-2-2 |
| Suitable for trailing chain and torsion resistant: | yes |
| eClass 7.0: | 27279218 |
| eClass 7.1: | 27279218 |
| eClass 8.0: | 27279218 |
| eClass 9.0: | 27060311 |
| eClass 9.1: | 27060311 |
| ETIM-6.0: | EC001855 |
| ETIM-7.0: | EC001855 |
| IPF Product Group: | 700 |
| shipping weight: | 0.02kg |
| packaging dimensions: | 150mm x 50mm x 240mm |
| customs tariff number: | 85444290 |
| Verpackungsmaße: | 150mm x 50mm x 240mm |
| Zolltarifnummer: | 85444290 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
